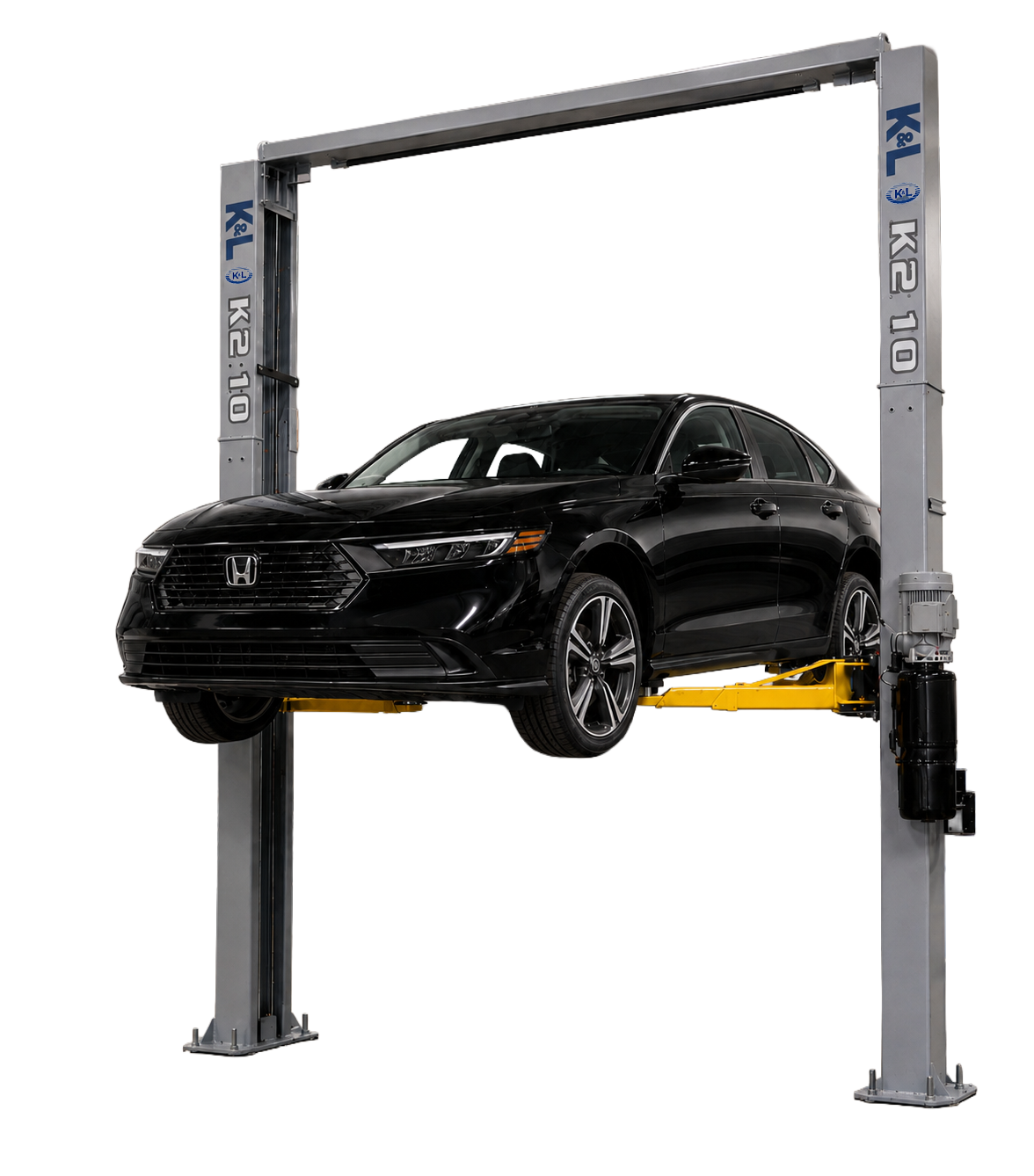

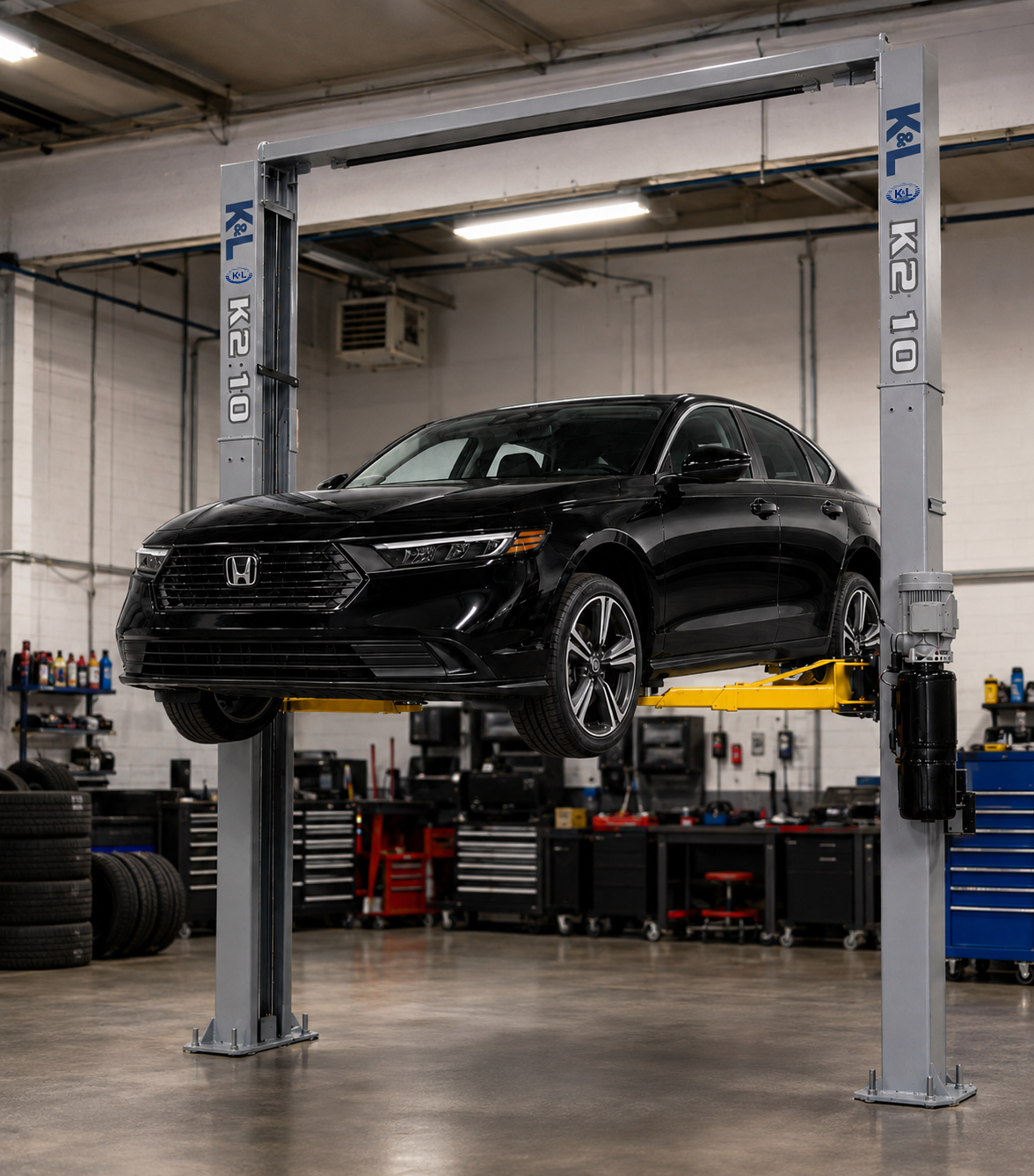

K&L 2-Post Lift
Two-Post Car Lift – 9,000 or 10,000 Lb. Capacity – Clearfloor
The K&L Supply 2-Post Lift is a heavy-duty clearfloor two-post vehicle lift engineered for professional service shops that need dependable lifting performance, unrestricted under-vehicle access, and flexible installation. Its direct-drive hydraulic system, overhead box-beam construction, and adjustable column configuration make it suitable for a wide range of vehicles, from low-profile cars and EV platforms to full-size trucks.
Engineered through advanced R&D in South Korea, the K&L Supply 2-Post Lift combines structural strength with smooth operation and reduced routine maintenance. K&L lifts are made using SS400 hot-rolled structural carbon steel, with guaranteed minimum tensile strength of 400MPa, the same steel used in high-rise buildings. Self-lubricating components help minimize regular service requirements, while adjustable height and width configurations allow the lift to fit a variety of service-bay layouts.
Key Features
- Clearfloor Design: Keeps the floor between the columns open for easier vehicle positioning and under-vehicle access.
- Direct-Drive Hydraulic System: Provides smooth and consistent lifting performance.
- Korean Precision Engineering: Developed for structural rigidity, dependable performance, and quiet operation.
- High-Quality Structural Carbon Steel: Strong, durable, and safe.
- Reduced Routine Maintenance: Self-lubricating components help reduce regular greasing and high-wear component service.
- Adjustable Shop Fit: Multiple column width and height configurations accommodate different service-bay layouts.
- Safety Lock: Mechanical Auto-Release / Manual Release Lock.
- EV-Ready Versatility: Designed to support service applications ranging from low-profile performance cars and EV battery platforms to full-size trucks.
Specifications
| Lifting Capacity |
9,000 or 10,000 lbs |
| Lifting Speed |
50–60 seconds |
| Descending Speed |
30–45 seconds |
| Lifting Height |
78–80 in. |
| Long Lifting Arms |
24.60–50.39 in. |
| Short Lifting Arms |
22.00–43.50 in. |
| Clearance Width |
102.36 in. |
| Mechanical Lock Release |
Auto-Release / Manual Release |
| K2 9,000 lb – Manual Lock SKU# |
62-66140 |
| K2 9,000 lb – Auto Lock SKU# |
62-66141 |
| K2 10,000 lb – Manual Lock SKU# |
62-66142 |
| K2 10,000 lb – Auto Lock SKU# |
62-66143 |
Certified Installers:
Need help installing your automotive lift? We connect you with certified installation services to get your equipment operational as quickly as possible.
« Click here » for details, options, and pricing. To connect with certified installation services, add a Product Service Request to your cart.
Caution:
All K&L Lifts should only be installed on level concrete floors with a minimum thickness of 6 inches and 4000 psi concrete that has been aged a minimum of 30 days, with rebar anchoring deeply for seismic stability. A qualified person should be consulted to address seismic loads and other local or state requirements.
A constant supply of 230 volt, 1PH, 60Hz, 25 amps electrical is required for this lift. This lift is designed for indoor use only. Outdoor installation is prohibited.
