K&L 2-Post Lift
Two-Post Car Lift - 9,000 or 10,000 Lb. Capacity - Clearfloor

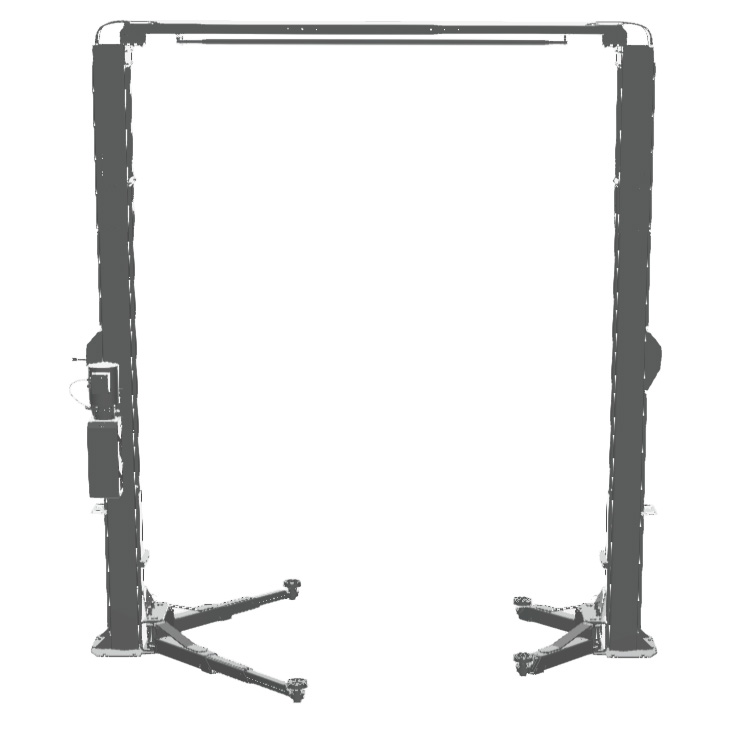

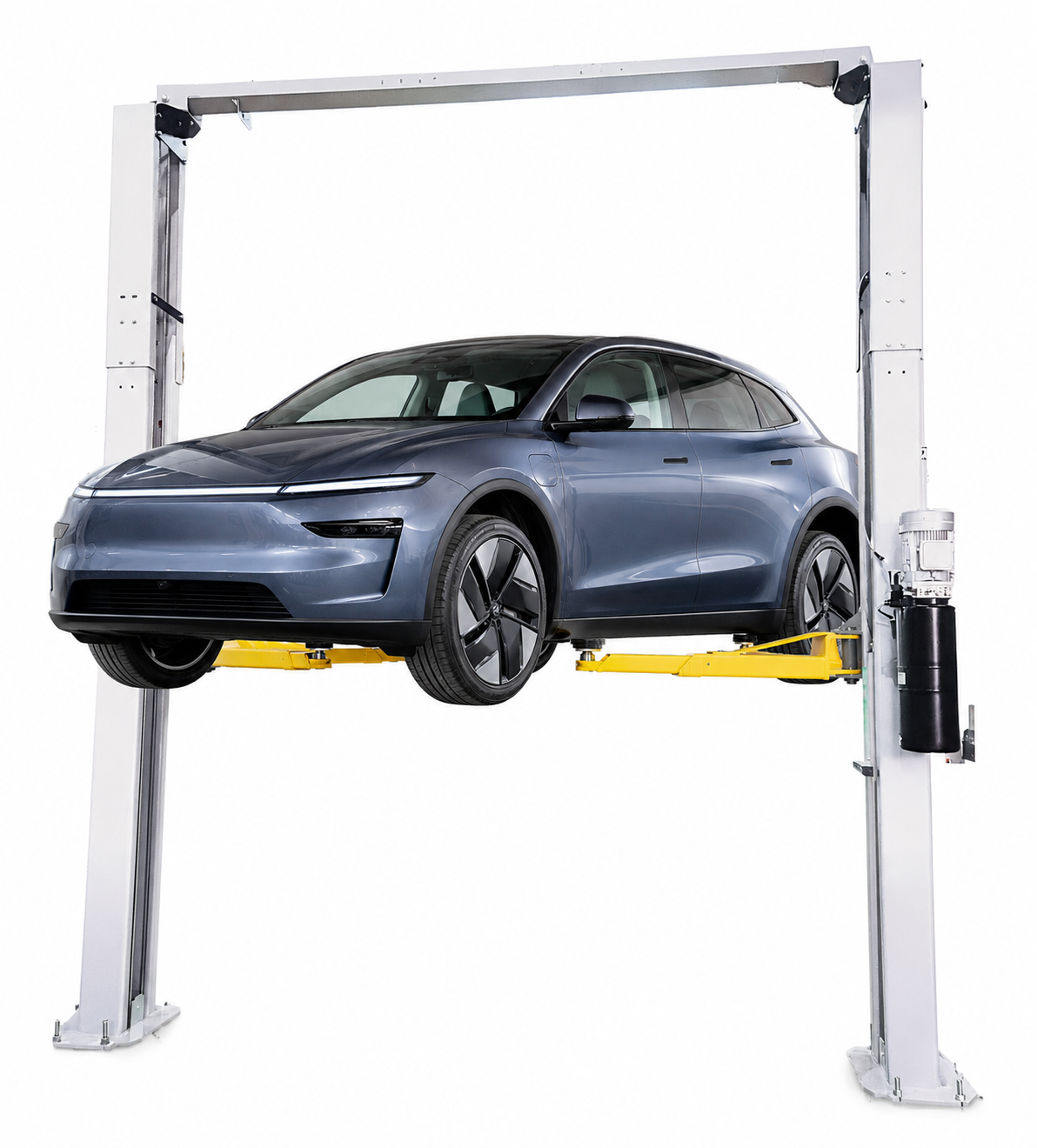

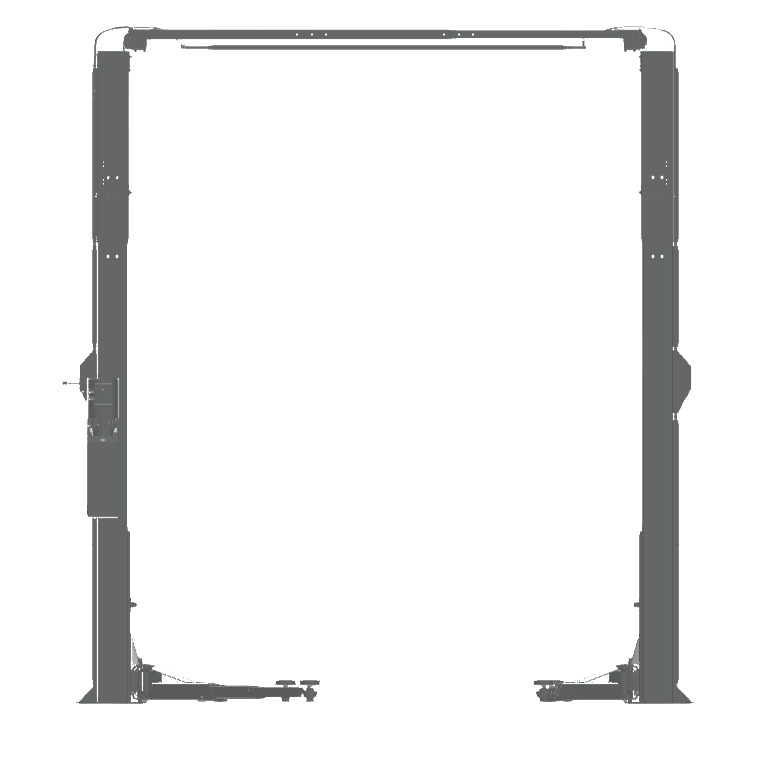

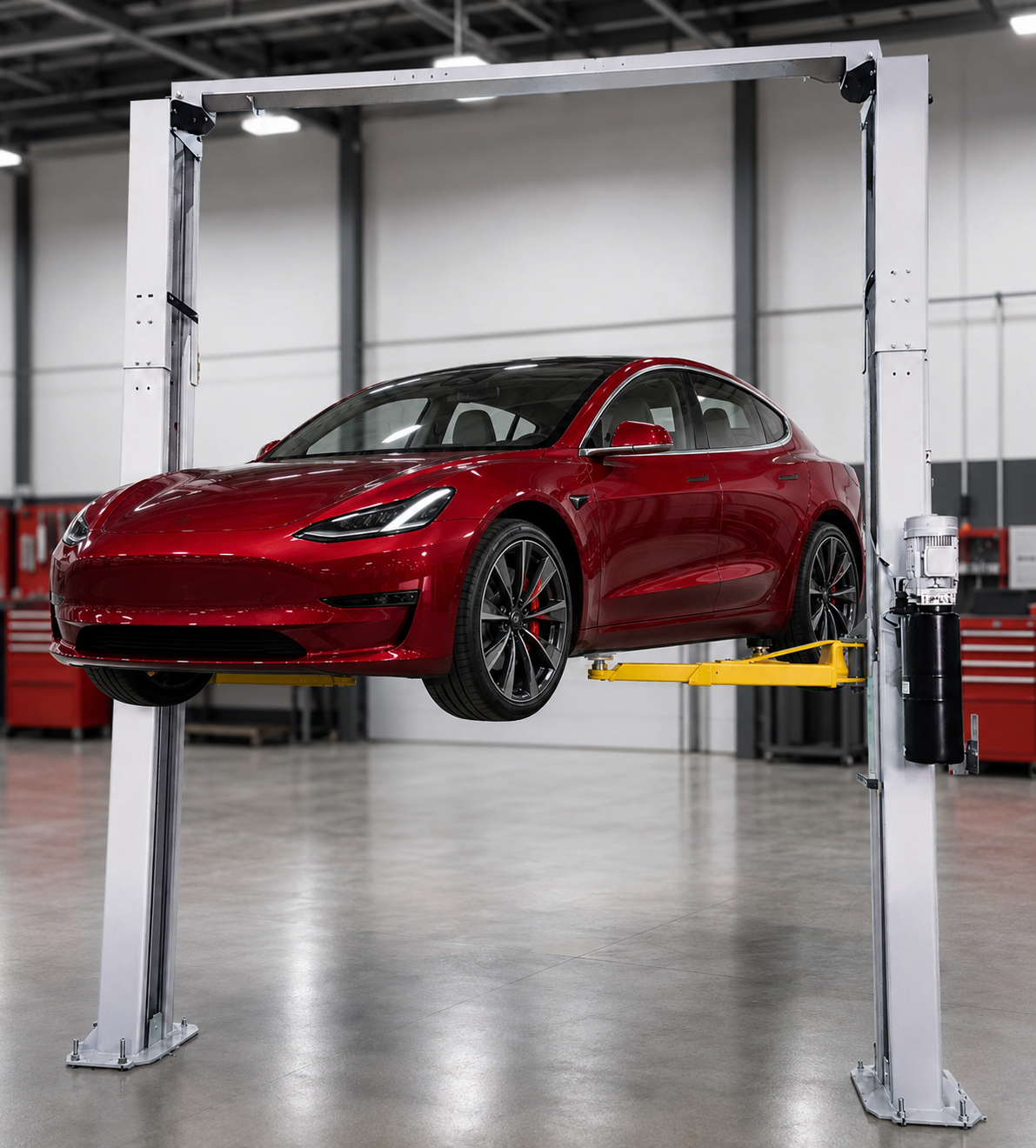

The K&L Supply 2-Post Lift is a heavy-duty clearfloor two-post vehicle lift engineered for professional service shops that need dependable lifting performance, unrestricted under-vehicle access, and flexible installation. Its direct-drive hydraulic system, overhead box-beam construction, and adjustable column configuration make it suitable for a wide range of vehicles, from low-profile cars and EV platforms to full-size trucks.
Engineered through advanced R&D in South Korea, the K&L Supply 2-Post Lift combines structural strength with smooth operation and reduced routine maintenance. K&L lifts are made using SS400 hot-rolled structural carbon steel, with guaranteed minimum tensile strength of 400MPa, the same steel used in high-rise buildings. Self-lubricating components help minimize regular service requirements, while adjustable height and width configurations allow the lift to fit a variety of service-bay layouts.
Key Features

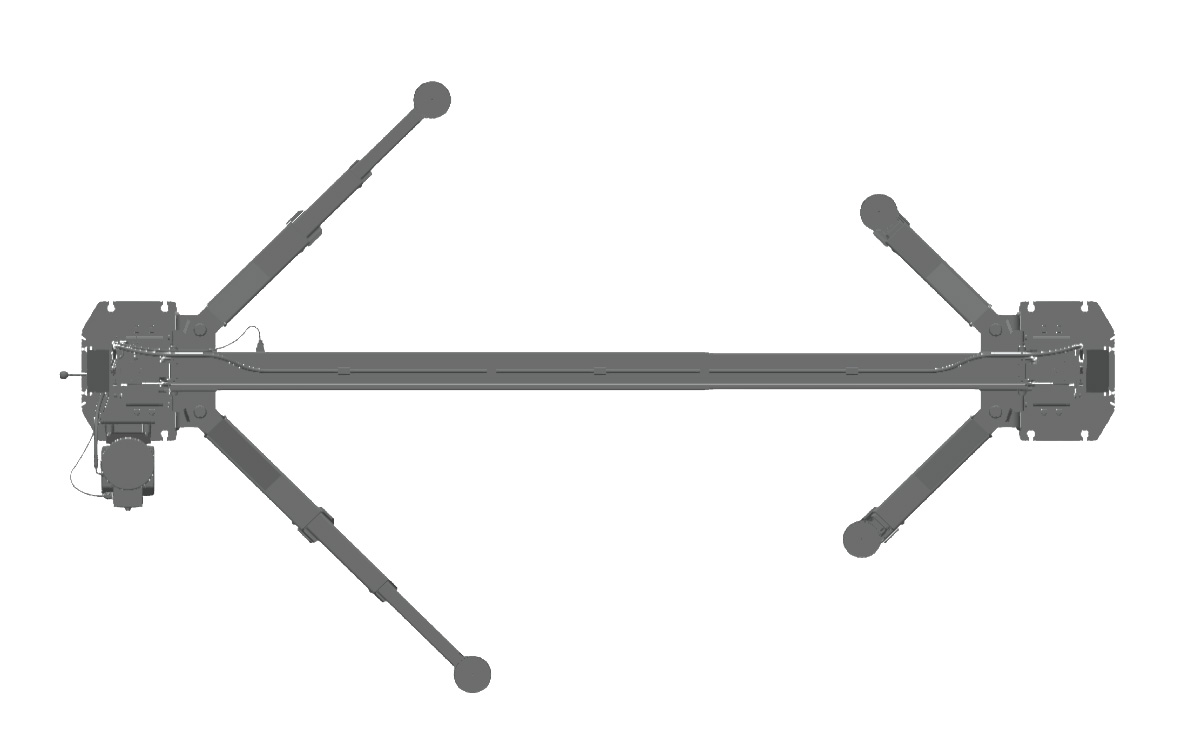

- Clearfloor Design: Keeps the floor between the columns open for easier vehicle positioning and under-vehicle access.

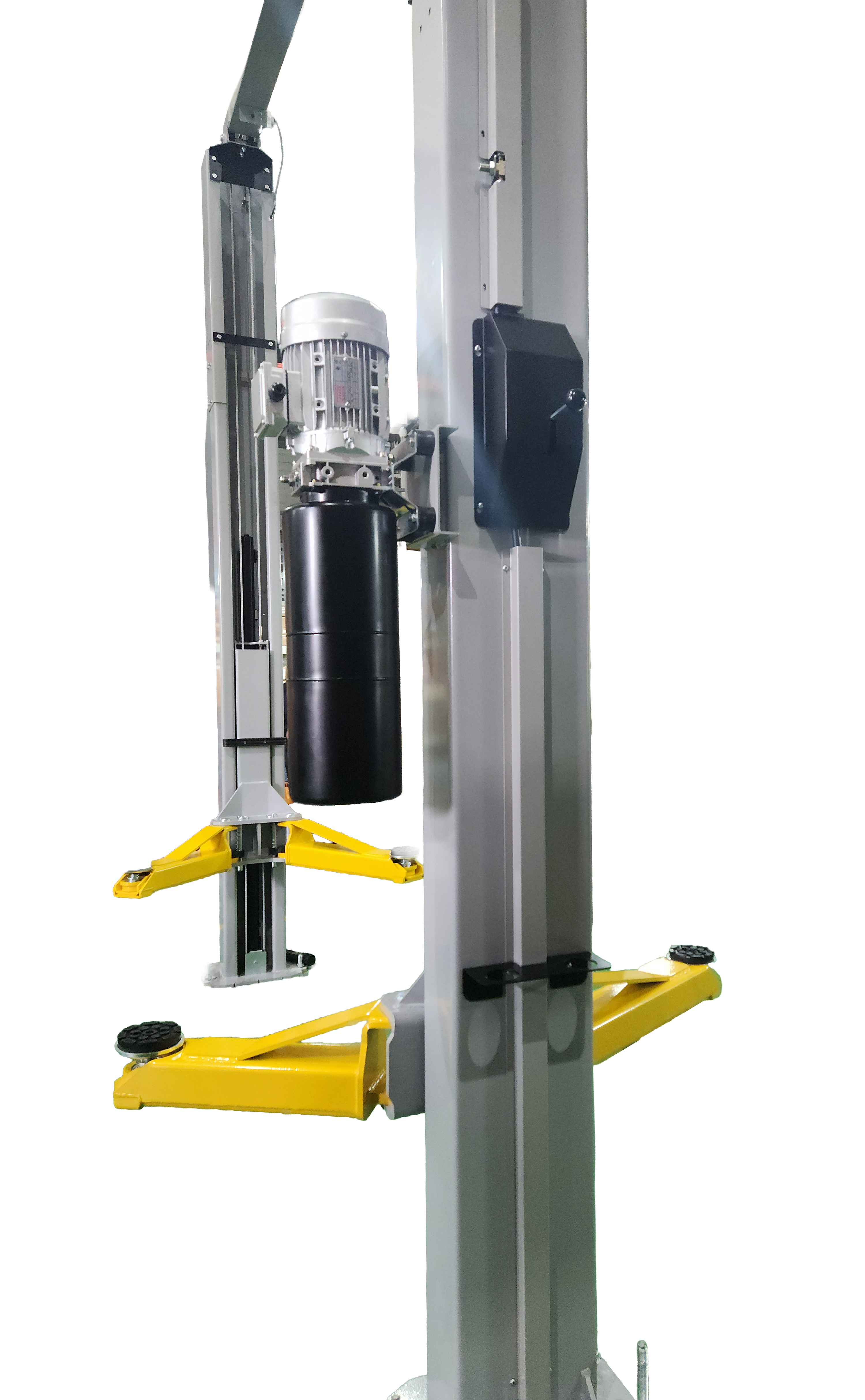

- Direct-Drive Hydraulic System: Provides smooth and consistent lifting performance.
- Korean Precision Engineering: Developed for structural rigidity, dependable performance, and quiet operation.
- High Quality Structural Carbon Steel: Strong, durable and safe.
- Reduced Routine Maintenance: Self-lubricating components help reduce regular greasing and high-wear component service.
- Adjustable Shop Fit: Multiple column width and height configurations accommodate different service-bay layouts.
- Safety Lock: Mechanical Auto-Release / Manual Release Lock.

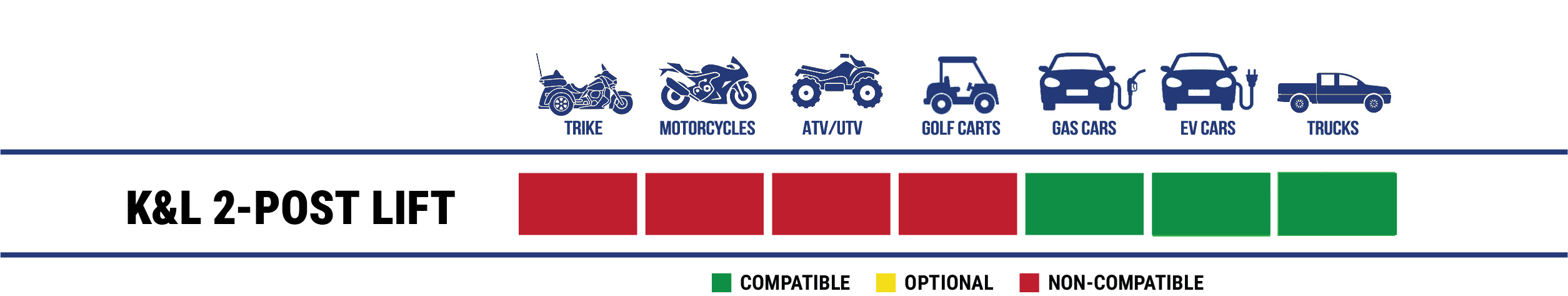

- EV-Ready Versatility: Designed to support service applications ranging from low-profile performance cars and EV battery platforms to full-size trucks.

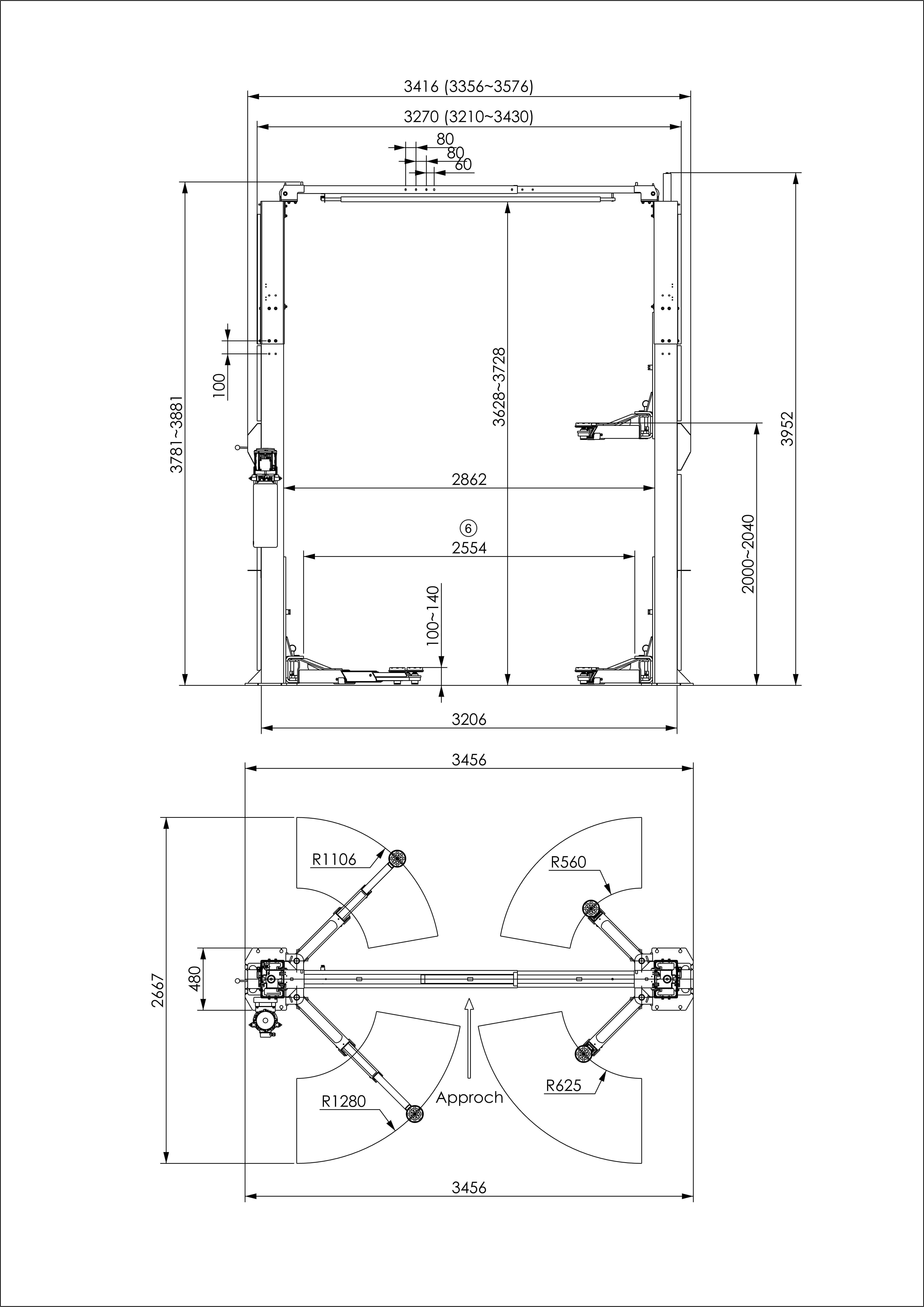

Specifications
| Lifting Capacity |
9,000 or 10,000 lbs |
| Lifting Speed |
50-60 seconds |
| Descending Speed |
30-45 seconds |
| Lifting Height |
78-80 in. |

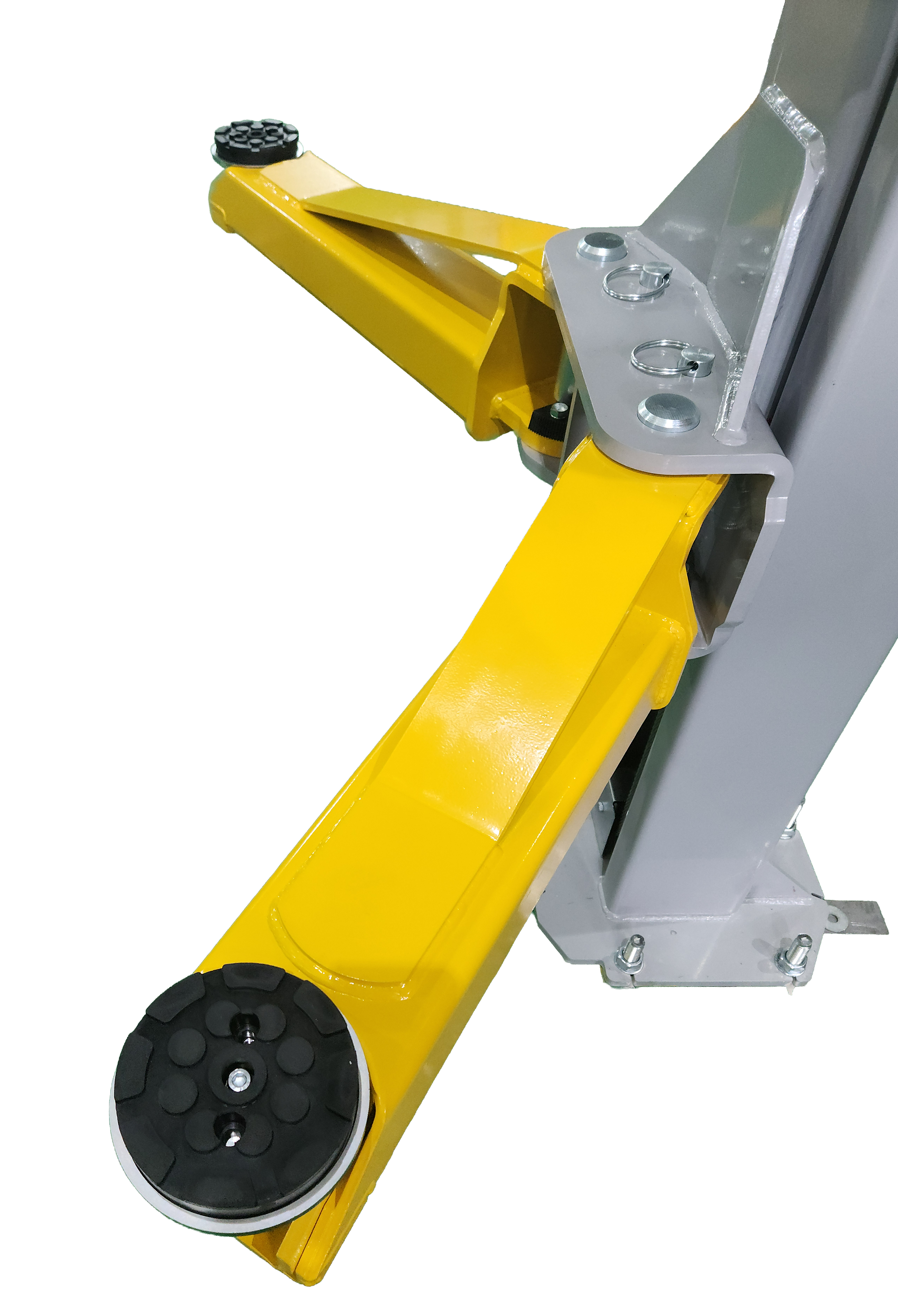

| Long Lifting Arms |
24.60-50.39 in. |
| Short Lifting Arms |
22.00-43.50 in. |
| Clearance Width |
102.36 in. |
| Mechanical Lock Release |
Auto-Release / Manual Release |
| K2 9,000 lb - Manual Lock SKU# |
62-66140 |
| K2 9,000 lb - Auto Lock SKU# |
62-66141 |
| K2 10,000 lb - Manual Lock SKU# |
62-66142 |
| K2 10,000 lb - Auto Lock SKU# |
62-66143 |
Certified Installers:
Need help installing your automotive lift? We connect you with certified installation services to get your equipment operational as quickly as possible.
« Click here » for details, options, and pricing. To connect with certified installation services, add a Product Service Request to your cart.
Caution:
All K&L Lifts should only be installed on level concrete floors with a minimum thickness of 6 inches and 4000 psi concrete that has been aged a minimum of 30 days, with rebar anchoring deeply for seismic stability. A qualified person should be consulted to address seismic loads and other local or state requirements.
A constant supply of 230 volt, 1PH, 60Hz, 25 amps electrical is required for this lift. This lift is designed for indoor use only. Outdoor installation is prohibited

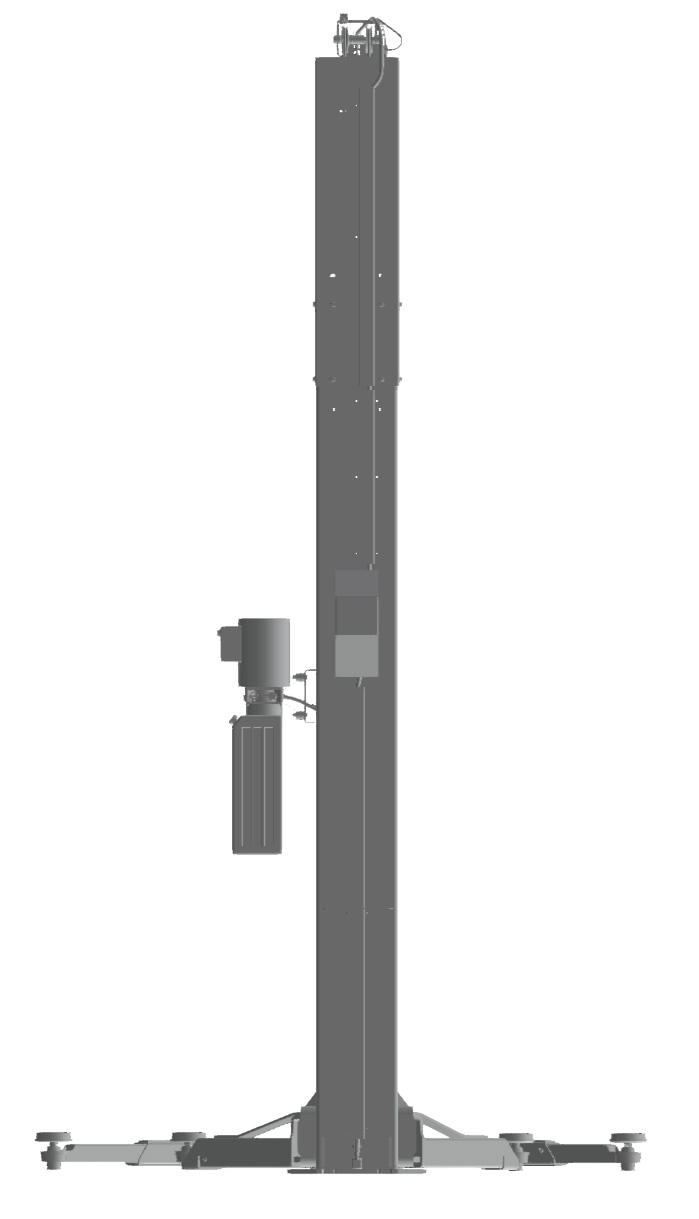

Drag to rotate. Scroll or pinch to zoom.
