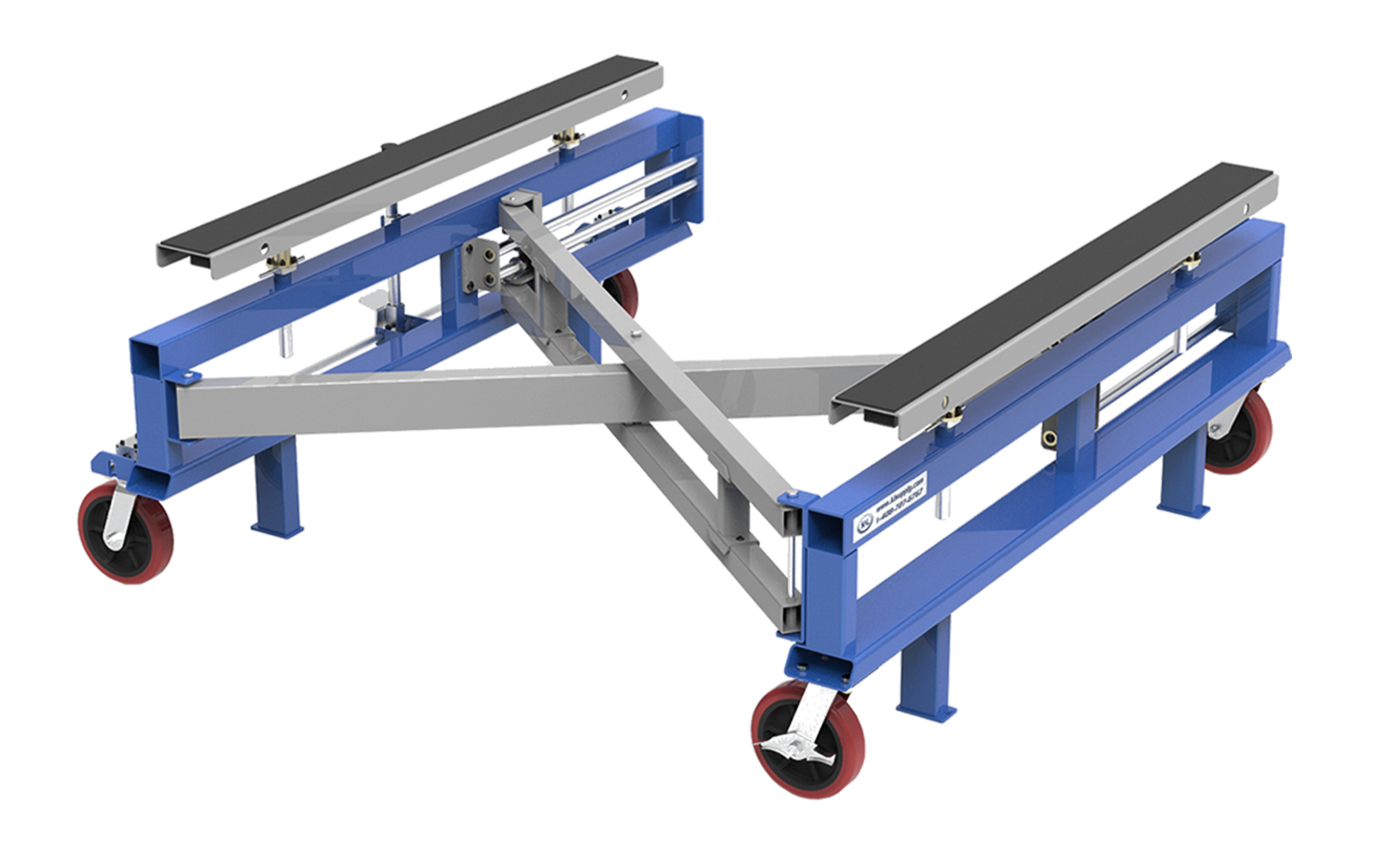

K8000 EV Battery Service Cart
Engineered for efficiency, safety, and control, the K&L Supply K8000 EV Battery Service Cart provides a dependable solution for handling, transporting, installing, and servicing electric vehicle battery packs. Its heavy-duty construction, adjustable rails, and precise mobility features help technicians securely position high-voltage battery components in professional service and production environments.
The K8000 is designed to simplify demanding EV battery service procedures. Its adjustable support rails accommodate battery packs of different widths, while the tool-free Easy Lock mechanism allows technicians to quickly secure the rails in the desired position. Industrial-grade locking casters provide smooth and controlled movement throughout the workshop.
Key Features
- 3,300 lb Maximum Capacity: Provides the strength required to support and transport large EV battery packs and modules.
- Adjustable Support Rails: The rail width adjusts from 16.5 inches to 62.5 inches to accommodate different battery pack dimensions.

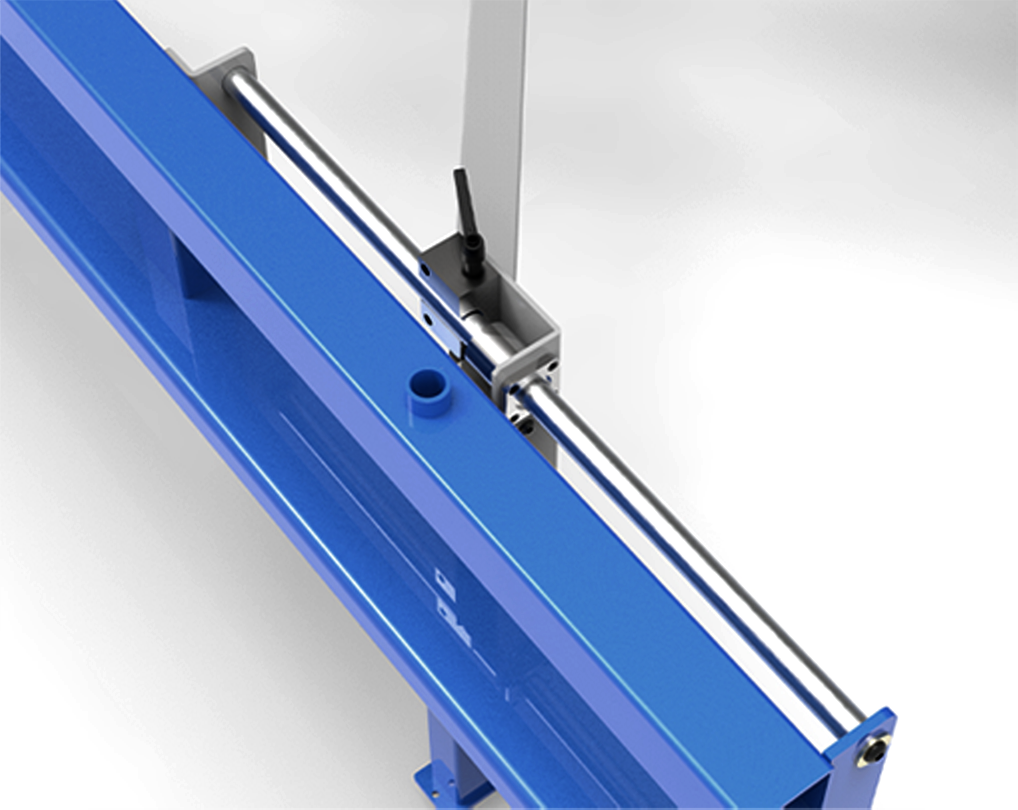

- Tool-Free Easy Lock Mechanism: Allows technicians to quickly slide, position, and secure the adjustable rails without using tools.

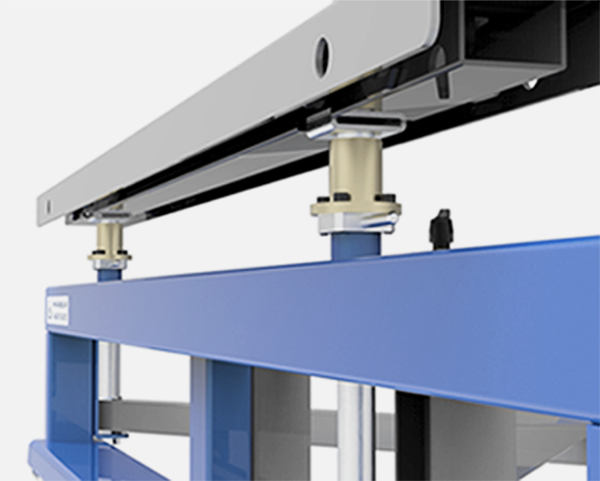

- Protective Rubber Pads: Help protect supported components and can be removed for convenient cleaning or replacement.
- Heavy-Duty Locking Casters: Provide smooth maneuverability and controlled positioning throughout the service area.
- Safety-Focused Design: Integrated locking features help provide secure handling and positioning of high-voltage battery components.
- Heavy-Duty Construction: Built for dependable performance in demanding professional service environments.

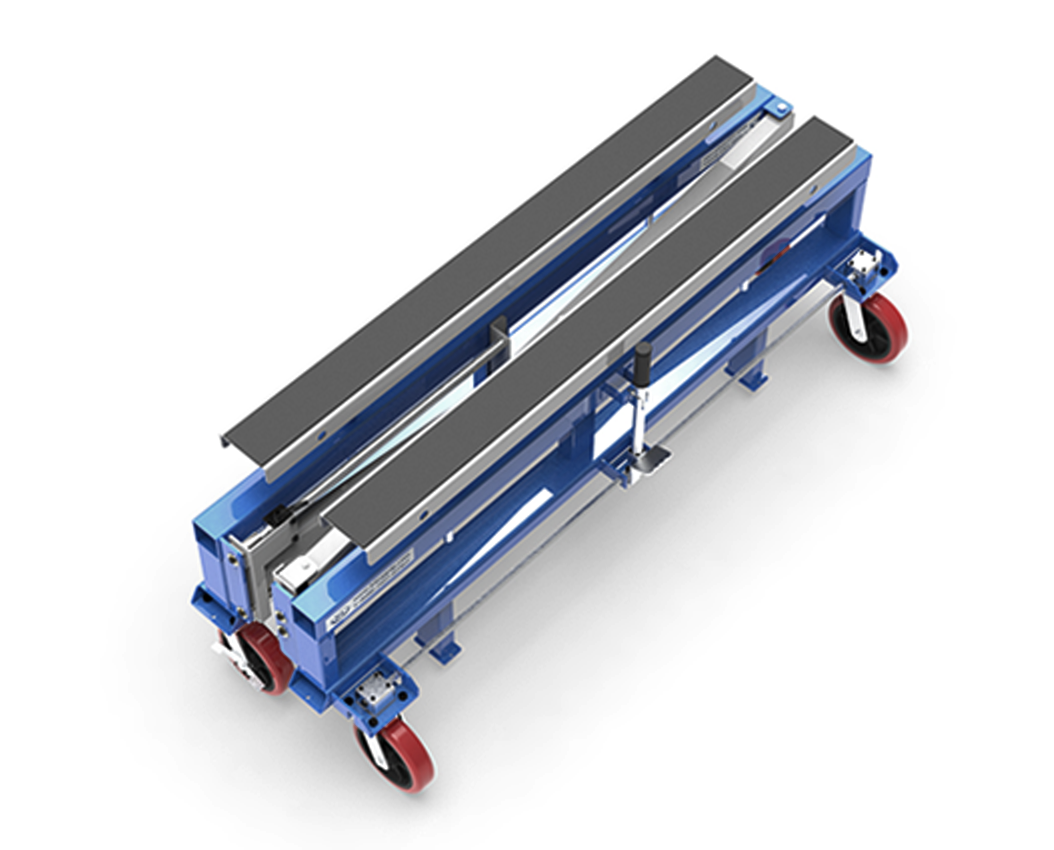

- Compact Storage: The adjustable design can be reduced in width for more convenient storage when the cart is not in use.
- Vehicle Compatibility: Designed for EV car and truck battery service applications.
Product Specifications
| Maximum Capacity |
3,300 lbs |
| Minimum Rail Width |
16.5 in. |
| Maximum Rail Width |
62.5 in. |
| Adjustable |
Yes |
| Compact Storage Design |
Yes |
| Compatible Vehicle Types |
EV Cars and Trucks |
| SKU |
35-8851 |
Recommended Applications
OEM Service Centers: EV battery installation, removal, and maintenance
EV Repair Facilities: Battery diagnostics, repair, and replacement
Production Facilities: Battery pack positioning and transportation
Technical Training Centers: EV battery handling and service training
K&L Quality & OEM Commitment
Product Video
EV Battery Service Cart Comparison
| Specification |
K&L K8000 EV Battery Service Cart |
Bosch EL-53000 HV Battery Support Fixture |
| Maximum capacity |
3,300 lbs |
3,000 lbs |
| Minimum support width |
16.5 in. |
N/A |
| Maximum support width |
62.5 in. |
N/A |
| Horizontal support adjustment |
Tool-free Easy Lock mechanism |
Tool-free plunger pins with lockable positions |
| Protective support surface |
Removable rubber pads |
Replaceable nonconductive rubber skid pads |
| Compact storage design |
Yes, adjustable-width design |
Yes, collapsible frame |
| Mobility |
Heavy-duty casters |
Four 8-in. nylon casters |
| Wheel locking system |
Locking casters |
Emergency brake on two casters; individual brakes and swivel locks on opposite casters |
| Compatible vehicle types |
EV cars and trucks |
Electric vehicles |
Specifications reflect manufacturer materials reviewed September 10, 2026 and are subject to change. N/A means information was not available in the reviewed materials; it does not indicate that a feature is absent.
