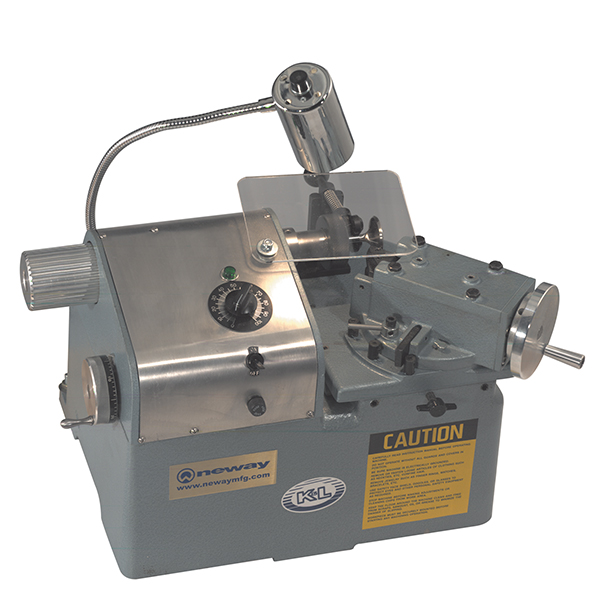

NEWAY VFR-1000 VALVE FACE RECONDITIONER
The VFR-1000 motorized valve face reconditioner gives you precise
valve face angle with less time, effort, and expense. The VFR-1000
machines the valve face in flawless concentric patterns, providing the
proper surface texture For a complete valve seal. Uses 115 volt-60
cycle. Standard equipment includes: 1 collet 3/8” (9.5MM), 3 carbide
tool bits (9 cutting edges), high intensity work light, 1 finishing disc
For butting valves, and illustrated operating instructions.
NOTE: Collets sold as an option. Please specify size requirements. SPECIFICATIONS
• Accuracy: Concentricity within OEM specs
• Valve Size Range: 1/2” to 2-1/2”
• Collet Size Range available (optional): .157” (4MM) through 1/2” (13MM)
• Variable Rotation Speed: Up tp 1300 RPM
• Variable Cutting Tool Feed
• Cutting Bit: Tungsten Carbide
