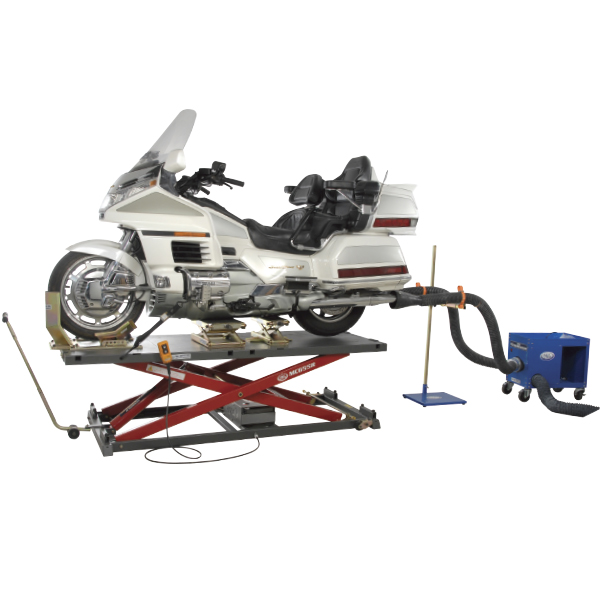

Mobile exhaust collection system unit will provide a safe working environment while running engines indoors. Just connect the rubber collector ends to the engine exhaust pipes and route the blower hose outside of the building. The blower will extract exhaust fumes at any rpm. Additional length of hoses are available to suit specific needs. Note: Not suitable for use with Dynomometers.
Features include:
- Compact mobile service cart
- Durable painted surface
- Locking swivel casters
- Quiet operation
- 110 volts
- Cabinet size 24” L x 16” W x 25” H
- Top storage Cabinet size 24” L x 16” W x 3” D
- Side storage 8” W x 15” D x 16” H
- Motor specs. 115v/60Hz x 6.4A x 3410rpm x 1/2hp
- Max. pressure 170mmAq
- Max. volume 20m3/min(CMM) or 706ft3/min(CFM)
- Two 3” x 5” intake hoses with heat resistant rubber collectors
