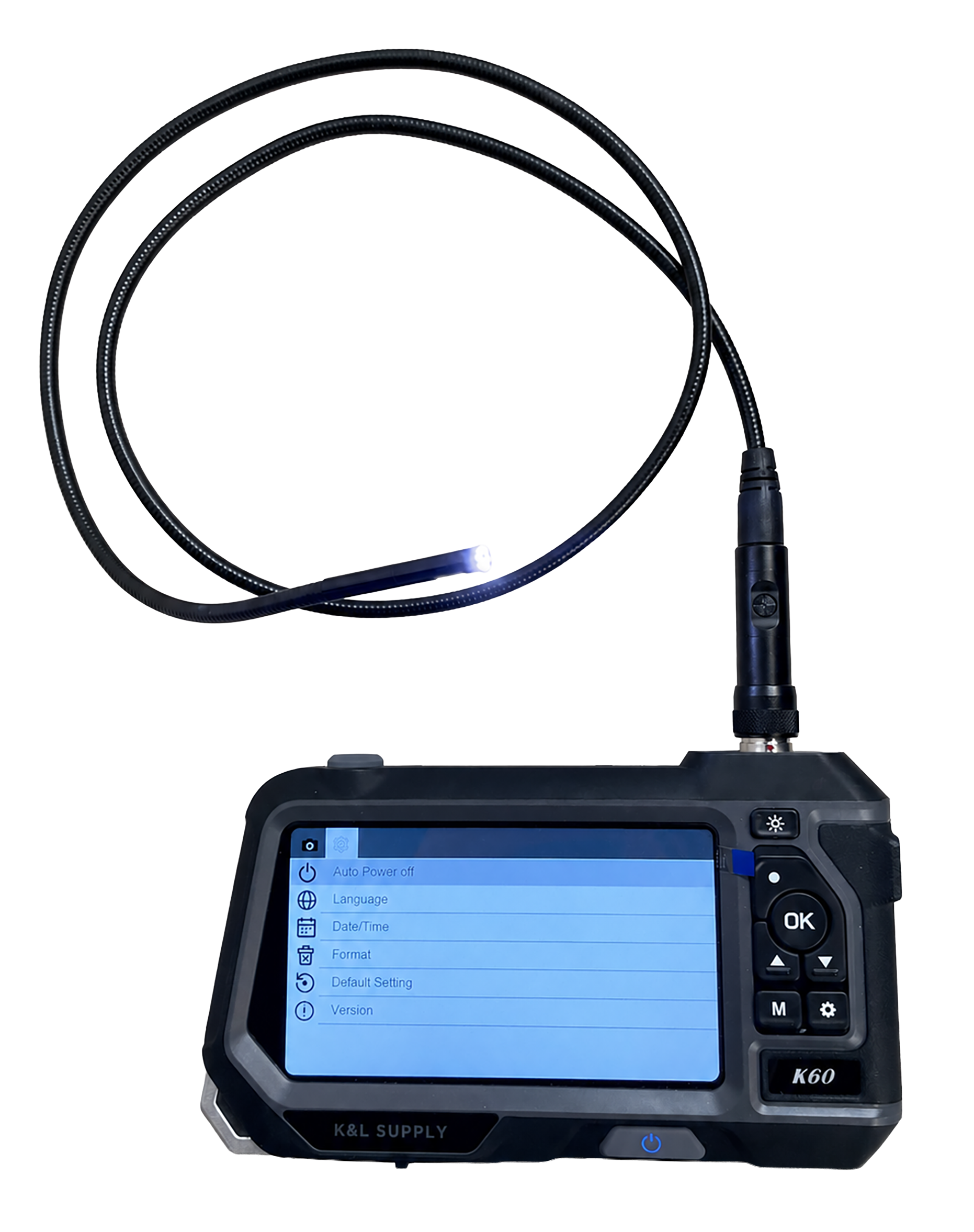

K60 5.5MM Dual Lens Borescope
The K&L Supply K60 Dual Lens Borescope provides clear visual inspection in tight, hard-to-reach areas. Featuring a 5-inch IPS HD display, dual straight-view and side-view cameras, adjustable LED lighting, and USB-C charging, the K60 is designed for professional automotive and powersports diagnostic work.
The compact 5.5 mm camera probe provides detailed inspection access inside engines, cylinders, intake systems, and other confined components. A built-in 32GB Micro SD card allows technicians to capture high-resolution images and record video for documentation, troubleshooting, and customer communication.
Key Features
- Dual Lens Camera: Switch between straight-viewing and side-viewing cameras for improved visibility in confined areas.
- 5-Inch IPS HD Display: Large 1280 x 720 screen provides a clear view during inspection and diagnosis.
- High-Resolution Image Capture: Captures still images at up to 1920 x 1080 resolution.
- Video Recording: Records inspection video at 1280 x 720 resolution.
- USB-C Charging: Convenient USB-C charging supports easy recharging in the shop.
- 32GB Micro SD Storage: Provides onboard storage for inspection photos and video recordings.
- Adjustable LED Illumination: Six high-intensity LEDs help illuminate dark inspection areas.
- Long Battery Life: 3500mAh lithium battery provides approximately 5 to 6 hours of operation.
- IP67 Camera Protection: Camera assembly is rated for splash, water, and dust resistance.
Specifications
| Display |
5-inch IPS HD display |
| Screen Resolution |
1280 x 720 pixels |
| Image Resolution |
1920 x 1080 pixels |
| Video Resolution |
1280 x 720 pixels |
| Camera Type |
Dual lens, straight-view and side-view |
| Camera Diameter |
5.5 mm / 8 mm |
| Probe Length |
3.2 ft. / 1 meter |
| Camera Resolution |
2.0 megapixel / 1280 x 720 pixels |
| Viewing Angle |
70 degrees |
| Straight-View Depth of Field |
1.18 to 3.15 in. / 30 to 80 mm |
| Side-View Depth of Field |
0.79 to 1.97 in. / 20 to 50 mm |
| Lighting |
6 adjustable high-intensity LEDs |
| Storage |
32GB Micro SD card |
| Charging Port |
USB-C |
| Battery |
3500mAh lithium battery |
| Battery Life |
Approximately 5 to 6 hours |
| Camera Protection Rating |
IP67 |
| Honda Part Number |
07AAJ-6S9C100 |
| SKU |
35-8156 |
Inspect hard-to-reach areas with greater visibility. The K60 Dual Lens Borescope combines a compact probe, dual camera angles, HD display, image and video recording, and adjustable lighting for professional diagnostic inspections.
