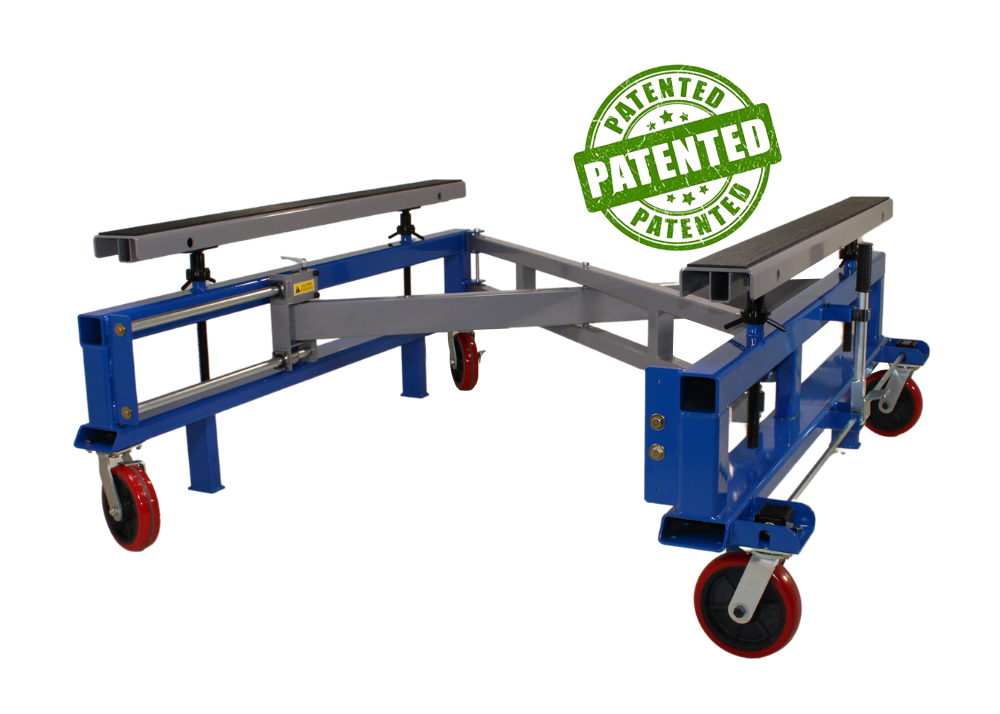

K8000 EV Battery Service Cart

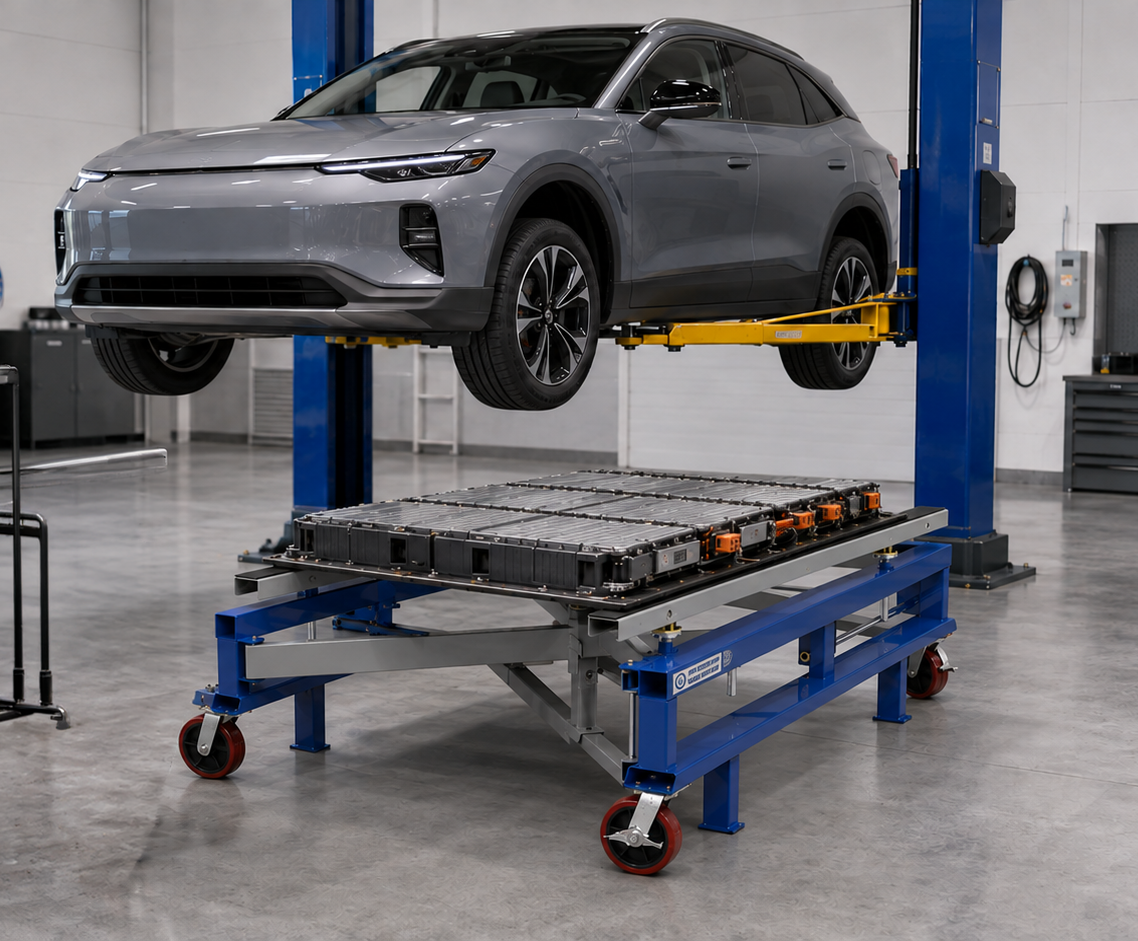

The patented K&L Supply - K8000 EV Battery Service Cart is built for safe, efficient handling, transport, installation, and service of EV battery packs. Its adjustable support rails and tool-free Easy Lock System allow technicians to quickly position and secure batteries of different widths.
The Easy-Turn Leveling System helps compensate for uneven shop floors, keeping the supported battery pack level during service, removal, and installation. Industrial-grade locking casters provide smooth, controlled movement and dependable stability throughout the workshop.
Industrial-grade locking casters provide smooth and controlled movement throughout the workshop.
Key Features
- 3,300 lb Maximum Capacity: Provides the strength required to support and transport large EV battery packs and modules.
- Adjustable Support Rails: The rail width adjusts from 16.5 inches to 62.5 inches to accommodate different battery pack dimensions.
- Tool-Free Easy Lock Mechanism: Allows technicians to quickly slide, position, and secure the adjustable rails without using tools.
- Easy-Turn Leveling System: Integrated levelers allow technicians to compensate for uneven shop floors and fine-tune the cart so the supported EV battery pack remains horizontally level during service, removal, and installation.
- Protective Rubber Pads: Help protect supported components and can be removed for convenient cleaning or replacement.
- Heavy-Duty Locking Casters: Provide smooth maneuverability and controlled positioning throughout the service area.
- Safety-Focused Design: Integrated locking features help provide secure handling and positioning of high-voltage battery components.
- Heavy-Duty Construction: Built for dependable performance in demanding professional service environments.
- Compact Storage: The adjustable design can be reduced in width for more convenient storage when the cart is not in use.
- Vehicle Compatibility: Designed for EV car and truck battery service applications.
Product Specifications
| Maximum Capacity |
3,300 lbs |
| Minimum Rail Width |
16.5 in. |
| Maximum Rail Width |
62.5 in. |
| Adjustable Leveling System |
Easy-Turn adjustable levelers for uneven shop floors |
| Compact Storage Design |
Yes |
| Compatible Vehicle Types |
EV Cars and Trucks |
Recommended Applications
OEM Service Centers: EV battery installation, removal, and maintenance
EV Repair Facilities: Battery diagnostics, repair, and replacement
Production Facilities: Battery pack positioning and transportation
Technical Training Centers: EV battery handling and service training
K&L Quality & OEM Commitment
Product Video
EV Battery Service Cart Comparison
| Specification |
K&L K8000 EV Battery Service Cart |
Bosch EL-53000 HV Battery Support Fixture |
| Maximum capacity |
3,300 lbs |
3,000 lbs |
| Minimum support width |
16.5 in. |
N/A |
| Maximum support width |
62.5 in. |
N/A |
| Horizontal support adjustment |
Tool-free Easy Lock mechanism |
Tool-free plunger pins with lockable positions |
| Protective support surface |
Removable rubber pads |
Replaceable nonconductive rubber skid pads |
| Compact storage design |
Yes, adjustable-width design |
Yes, collapsible frame |
| Mobility |
Heavy-duty casters |
Four 8-in. nylon casters |
| Wheel locking system |
Locking casters |
Emergency brake on two casters; individual brakes and swivel locks on opposite casters |
| Compatible vehicle types |
EV cars and trucks |
Electric vehicles |
Specifications reflect manufacturer materials reviewed September 10, 2026 and are subject to change. N/A means information was not available in the reviewed materials; it does not indicate that a feature is absent.
