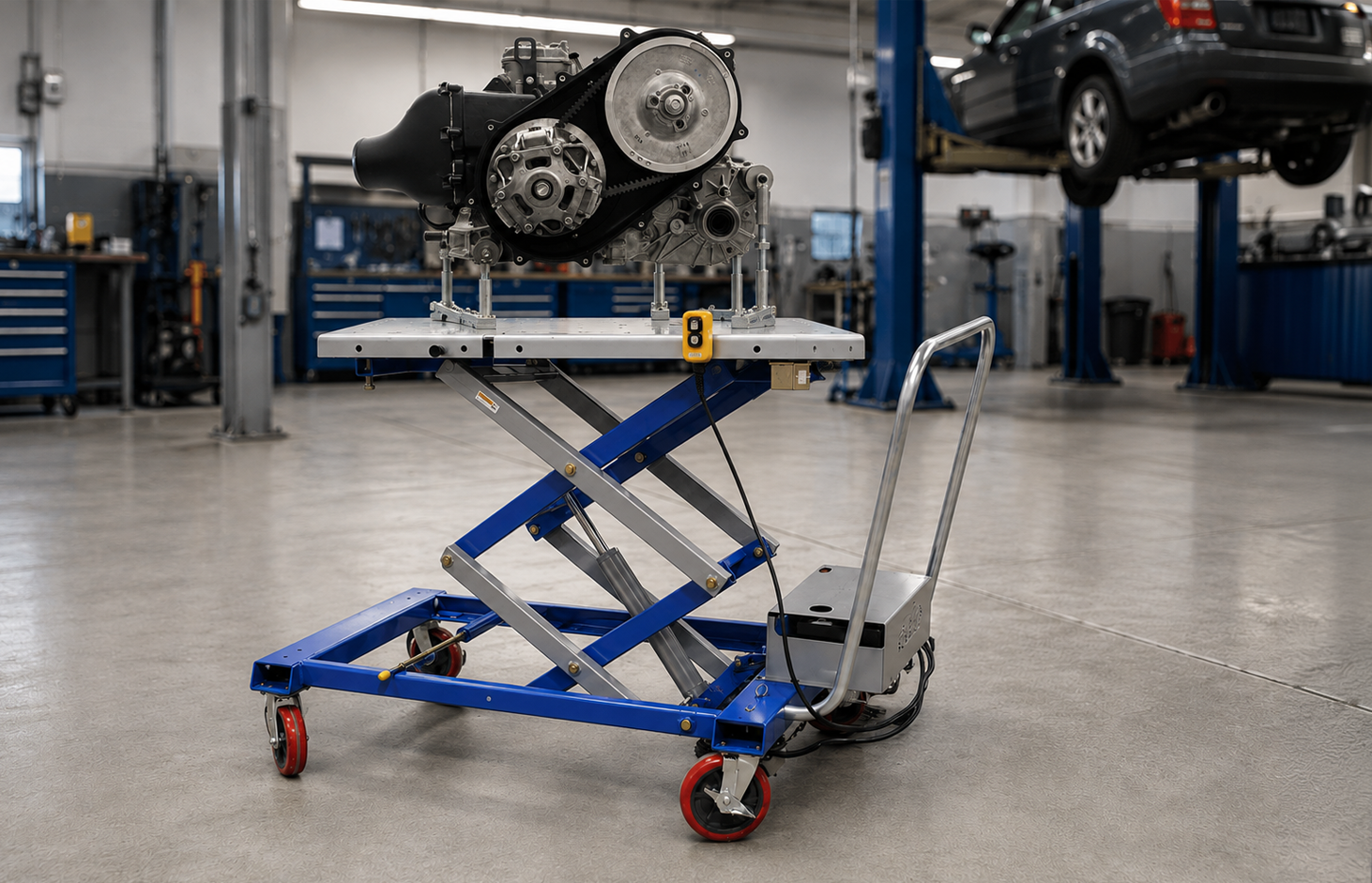

K1700 Powertrain Lift
The OEM Approved K&L Supply K1700 Powertrain Lift is an all-in-one solution for removing and installing engines, transmissions, EV batteries, and other heavy components. With a 2,400 lb capacity and precise electric-over-hydraulic or air-hydraulic operation, the K1700 provides the control and versatility professional shops need. Its tilting platform helps technicians level and fine-tune component positioning during removal and installation, while precision mounting holes allow fixture jigs and adapters to be positioned for components of different sizes and shapes.
Key Features
- 2,400 lb Capacity
- Electric-Over-Hydraulic Operation or Air-Hydraulic Operation
- Fast, Smooth Lifting Action
- Remote Control Operation
- Sliding & Split Table
- Tilt-Leveling Platform
- Precision Mounting Holes
- Universal Fitting Fixture
- Built-In 110V Power Strip
- Integrated Safety Locks
- Removable Positioning Handle
- Locking Casters for Stability

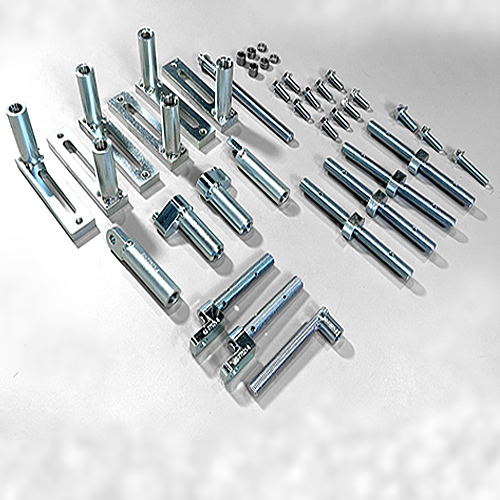

- Includes Fixture Jigs
| Maximum Capacity |
2,400 lbs |
| Minimum Height |
21.5 in. |
| Maximum Height |
78 in. |
| Table Width |
36 in. |
| Hydraulic System |
Electric over Hydraulic / Air-Hydraulic |
| Control |
Remote operated |
| Table Design |
Sliding, Split, and Tiltable |
| Power Supply |
Built-in 110V power strip |
| Mobility |
Locking casters |
K&L Quality & OEM Commitment
Assembly Video
Powertrain Lift Comparison
| Specification / Feature |
K&L K1700 |
OTC 1595 |
Rotary LT35A |
| Maximum lifting capacity |
2,400 lb |
2,500 lb |
3,500 lb |
| Minimum table height |
21.5 in. |
29 in. |
26.25 in. |
| Maximum table height |
78 in. |
80 in. |
67.375 in. |
| Table width |
36 in. |
20 in. |
31.875 in. |
| Table length |
42–50 in. |
32 in. |
73.625 in. |
| Split-sliding and tilt tabletop |
Yes |
N/A |
Yes |
| Built-in work-area power strip |
110V power strip |
N/A; includes 30 ft retractable extension-cord reel |
N/A |
| Lifting system |
Electric-over-hydraulic or Air-hydraulic |
110V AC electric-hydraulic |
Air-hydraulic; requires 90–120 PSI |
| Safety locks |
Integrated safety locks |
N/A |
Air-released mechanical locks |
| Positioning handle |
Removable positioning handle |
N/A |
Positioning handle shown; removability N/A |
Specifications reflect manufacturer materials reviewed September 9, 2026 and are subject to change. N/A means information was not available in the reviewed materials; it does not indicate that a feature is absent.
