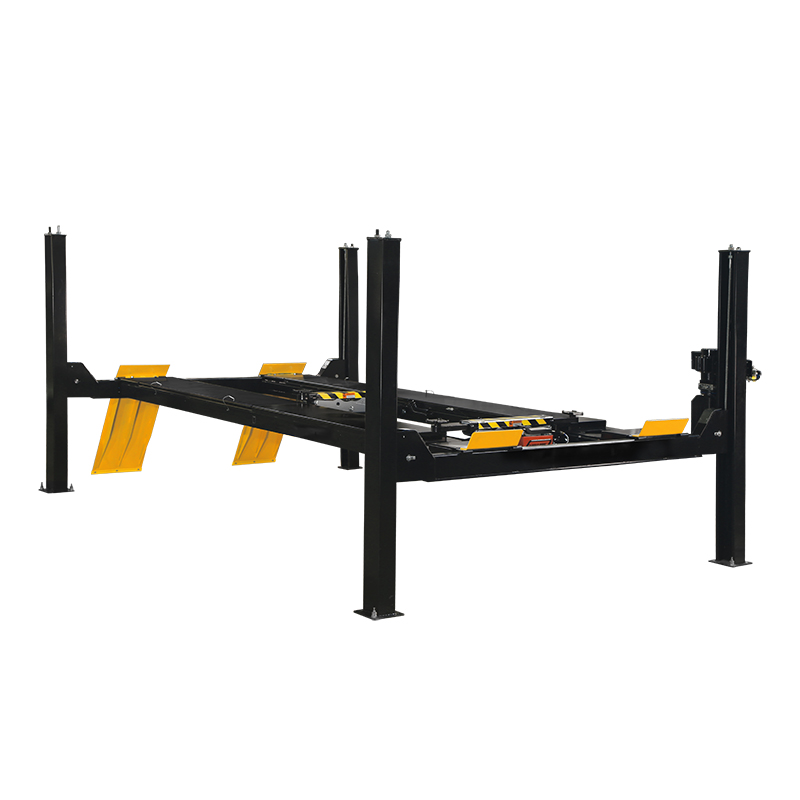

HOFMANN 12K FOUR POST ALIGNMENT LIFT
12k closed front, four-post alignment lifts give you 12,000 lbs of heavy-duty lifting capacity in a compact with no need for multiple lifts. Whether it is a micro car or a heavy-duty pickup, the 12k four post alignment lift has four wheel alignment capabilities that cover a full range of vehicle
requirements.
FEATURES:
• 20.5” wide “Pro-Style” runways save time when loading vehicles of narrow to wide track widths
• Closed front design maintains a steady and shake free lift for advanced alignment equipment measurements
• Ultra low-profile design allows easy-on approach angle for low profile vehicles
• 81.6” long rear slip plates — no need for repositioning of the front turnplates to accommodate for longer or shorter vehicles
• Full floating, flush mounted rear slip plates use a Delrin ball style bearing assembly similar to our time-tested heavy-duty lift to ensure ease of
vehicle movement, durability and reduced maintenance
• Hydraulic cylinder mounted underneath runway
• Industry proven, brake formed front columns and traverse beam design spreads critical load forces over longer/larger supporting areas to ensure alignment accuracy
• Locking ladders mount through the traverse beams to ensure safety lock engagement
• Filter / Regulator / Lubricator (FRL) provides a clean and lubricated air supply to the lift and jack systems; improving reliability and reducing the need for maintenance
• Pre-drilled holes for Hofmann® Geoliner® 320 alignment system brackets
• Slack cable support system to keep cables from hanging when the lift is on the locks
• Textured approach ramps for positive vehicle traction
SPECIFICATIONS
Capacity 12000 lbs
Lifting times 74 s
Lifting height 78 inch
Power supply 230 VAC 1Ph 50/60 Hz
Weight 3307 lbs
4 Wheel Alignment Wheelbase 88.5" - 158.5" inch
2 Wheel Alignment Wheelbase 168.8" inch
Air Supply Requirements 90-120 Psi
Front Accessibility closed
Overall Length 251.5" inch
Service Wheelbase 183" inch
Overall Width 134.8" inch
Column Height 90.5" inch
Lifting Speed 74 s
Runway Width 20.6" inch
35-66121 Hofmann 12k Four Post Alignment Lift
