The market choice for reliability and long-lasting performance is designed for low-profile/ultra-high performance tires. Run-flat certified by all major tire manufacturers. PAX capable with accessory kit.
FEATURES:
• Available in electric or air motor.
• Electric motor comes standard with 2 speed forward & 1 speed reverse table tops
• Built-in table inflator with jets in the jaws.
• Unique mount/demount head does not touch the rim during operation.
• Locking handle locks head away from the rim.
• Powerful action bead-breaker blade follows bead to inside rim contour.
• Heavy-duty turntable rotates in either direction.
• Rebuildable stainless steel cylinders.
• Heavy-duty stainless steel turntable.
• Safe, fast, profitable and affordable.
• Pneumatic-locking mount/demount head.
• Sturdy tilt-back tower.
• Tire pressure sensor style rims changes safely.
• Interchangeable locking peaks on jaws.
• Table top rotation double-speed RPM 6-16.
• Shipping weight 573 lbs.
SPECIFICATIONS
Max. Wheel Diameter 40"
Wheel width 14"
Rim Diameter - Internal 13” to 26”
Rim Diameter - External 10” - 24”
Rim Diameter w/Adapters - External 8” to 26”
Turntable Torque 811 ft-lb
Turntable Speed 8.5 rpm
Power Requirements 110 V / 1PH / 50 Hz
Air Requirements 130 psi
Dimensions 73" H x 43" W x 70" D
Weight 547 lbs.

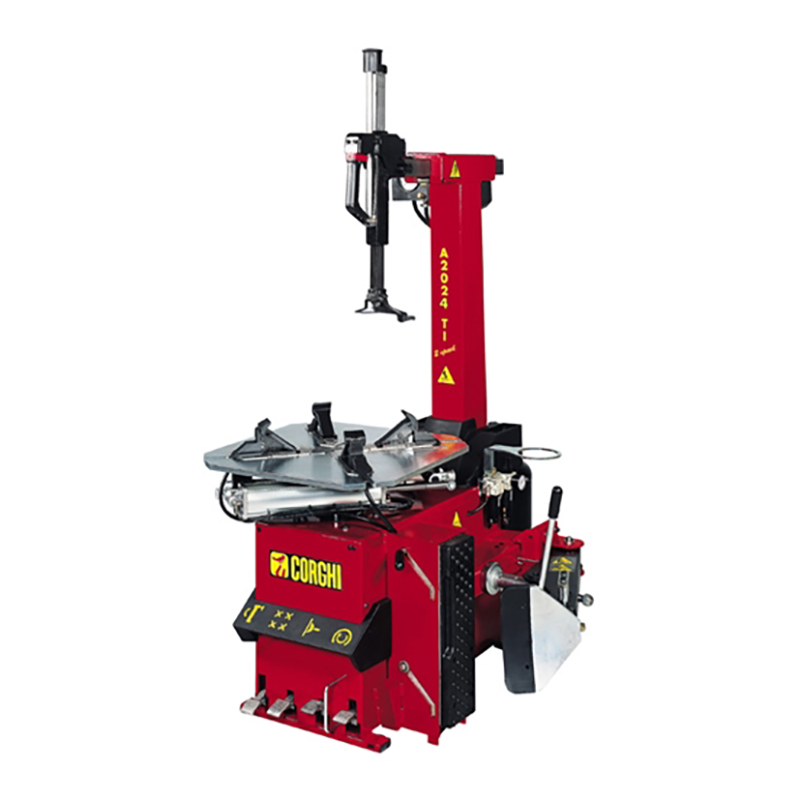

35-66131 Corghi A2024TI Tilt Back Tire Changer
