Since 2001, the year our “Leva la leva” technology was introduced, many hurried to chase after us, presenting their own solutions. They called their solutions "no lever", or "leverless", or the "automatic lever system". The truth is however that no one has been able to copy the patented “Leva la leva” system with the “SMART Corghi System” device, the only existing solution that: NEVER TOUCHES THE RIM, during any working phase, annuls all tension on the tire during the tire demounting/mounting phases. This is the difference between Corghi and the others. Artiglio Master J has this technology at its core offered in a very competitive price. A perfect synthesis between tested constructive quality, unique technological solutions and a competitive price represents the ideal machine and a perfect balance for an investment. Since 2001 this has guaranteed our customers a technological advantage that has remained unmatched over time. NOT ALL LEVA LA LEVA SOLUTIONS ARE EQUAL! And we are well aware of this. VERSION WITH AUTOMATIC WHEEL CLAMPING:
Features
DISPLAY PANEL:
Ergonomic and multifunctional consoles with a display that makes it possible to electronically set the rim diameter and obtain the positioning of the work tools in a quick, practical and safe manner. Divided into three distinct work areas, it makes it easier to immediately recognize
movements and makes the system easier to use for the operator
BEAD BREAKER: Dynamic bead breaking device with dual specular bead breaker disc. The radial positioning of the discs is made easier by an automatism that is able to prevent any manual positioning by the operator. Controlled penetration (Patent Pending) Precision, rapidity and repeatability are guaranteed by the patented bead breaking system and by the perfectly synchronized and symmetrical motions of the two discs.
DEMOUNTING AND MOUNTING TOOL:
Bead demounting and mounting tool with automatic bead searching and Smart Corghi System demounting movement is able to reduce the tension on the tire without ever touching the rim. Automatic location of the tire bead, with no contact with the rim itself, regardless of its shape.
SAFE & UNIVERSAL WHEEL CLAMPING: The axial mounting turntable ensures rapid clamping while permitting bead breaking on both sides without having to turn the wheel itself. The constant working height (reverse rims excluded) has been optimized for ideal operator ergonomics with all wheel types.
AXIAL MOUNTING TURNTABLE:
Axial mounting turntable allows quick, secure wheel clamping and bead breaking on both sides with no need to turn the wheel over (wheel is clamped on the machine just once).
BOTTOM BEAD DEMOUNTING: Rapid bottom bead demounting procedure with bead breaker disc (particularly useful with stiff sidewalls)
BEAD DEPRESSOR:
• Bead depressor with adjustable working height
• Depressor shape ideal for RFT tires
• Standard in all versions
FIXED WORK POSITION: Pedals, consoles, tray and wheel loading on the same side and a constant working height to obtain perfectly ergonomic movements.
WHEEL LIFTER: EFFORTLESS OPERATION a wheel lifter for effortlessly placing wheels of any type onto the turntable (standard accessory)
SPECIFICATIONS:
Max. Tire Diameter 40"
Max Wheel Width 15"
Wheel Diameter 12” to 26”
Turnable Torque 811 ft-lb
Turnable Speed 7 rpm/18 rpm
Max Bead Breaking Range 18"
Bead Breaker Stroke 17.7"
Bead Breaker Force 1,710 lbs
Operation Pneumatic
Power Requirements 110 V / 1PH / 50 Hz
Air Requirements 130 psi
Dimensions - Max 71.42" H x 44.65" W x 74.96" D
Weight 881 lbs.

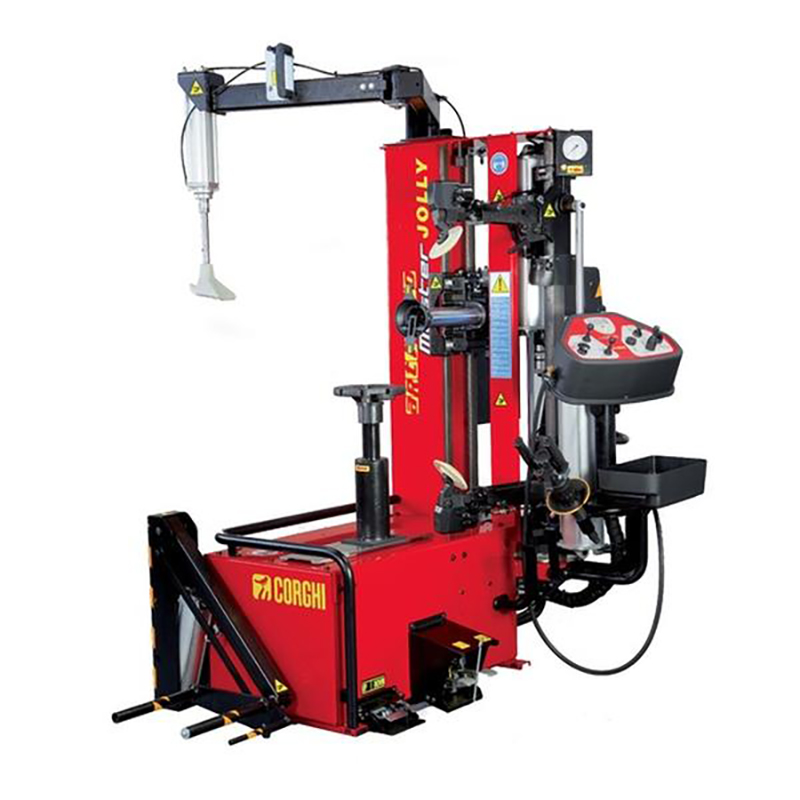

35-66132 Corghi Artiglio Master J Touchless Tire Changer
