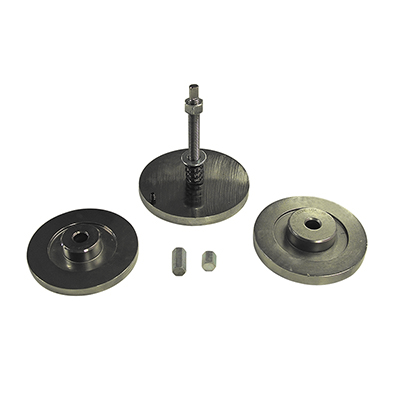

To determine the correct forward gear shim, it is necessary to
accurately measure the forward gear bearing height. This tool
gives the technician a means of loading the bearing to
manufacturer specifications to determine the shim size

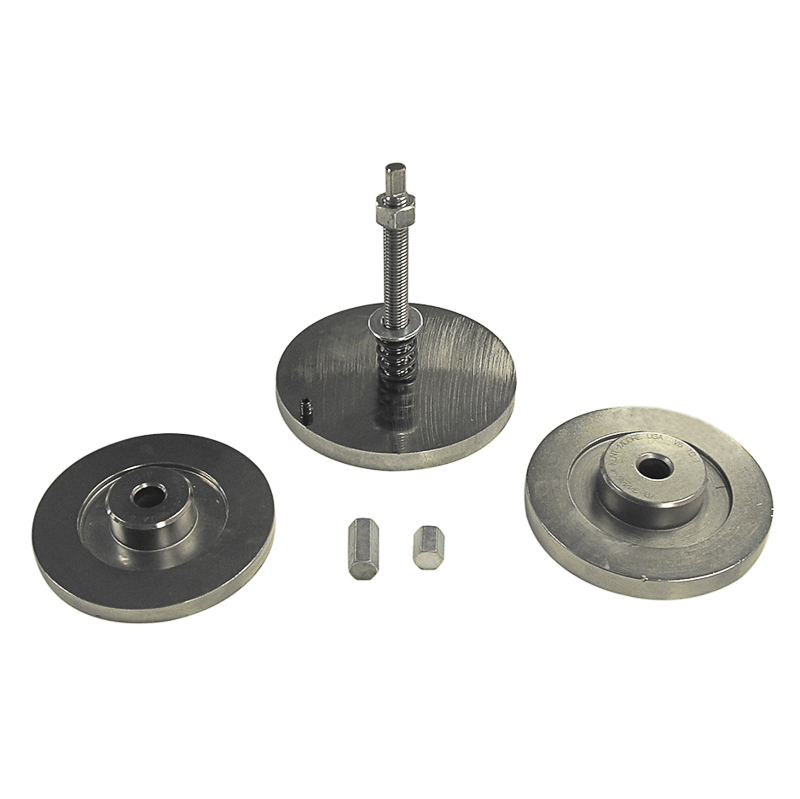

Includes:
YB-34446-1 (35-34446-1) Base Plate
YB-34446-3 (35-34446-3) Compression Spring
YB-34446-4 (35-34446-4) No. 1 Press Plate
YB-34446-5 (35-34446-5) No. 2 Press Plate
YB-34446-6 (35-34446-6) Gauge Pin
YB-34446-7 (35-34446-7) Gauge Pin
YB-34446-8 (35-34446-8) Gauge Pin
YB-34446-11 (35-34446-11) Instruction Card, Hex Nut 500-13 UNC-28 1.06 o.d.x 53 i.d.x .09 thick.
Application: 40~Up
35-34446
YB-34446
