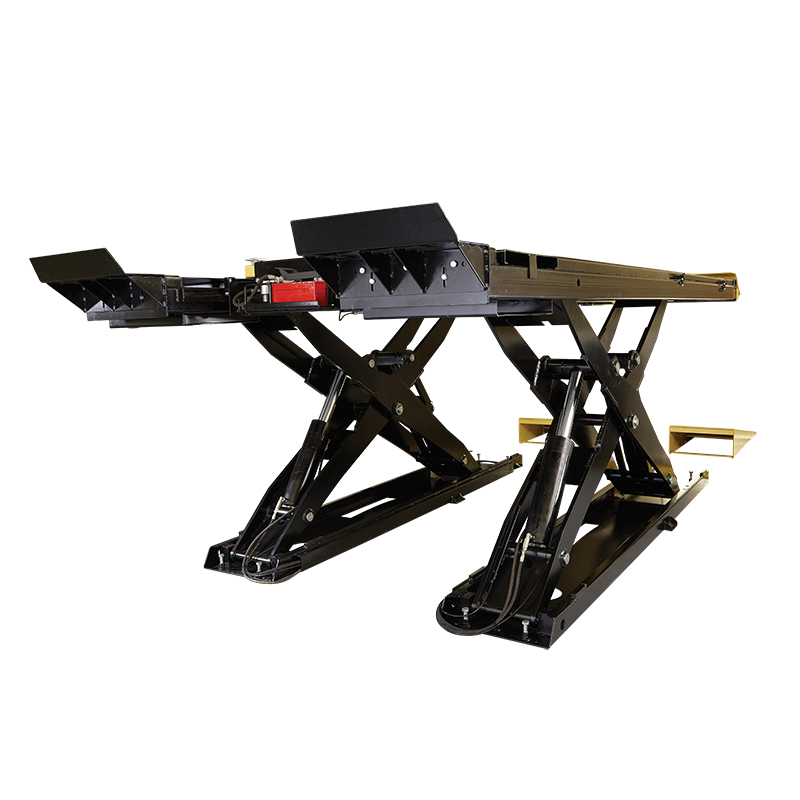

HOFMANN 12K SCISSOR ALIGNMENT LIFT
The Hofmann® 12k Scissor Alignment Lift is a rugged 12,000 lb capacity scissor alignment lift with open front design that provides easy access to alignment service and calibration areas. “Pro-Style” 24" wide runways provide easy drive-on for large vehicles. Hydraulic equalization and full
support rear member deliver repeatable smooth level lifting. Flush mounted rear slip plates with heavy-duty encapsulated bearings support and offer smooth movement to ease rear alignment adjustments.
FEATURES:
• Adjustable turnplate pocket depth ensures level positioning of turnplates
• Expandable approach ramps provide multi tiered drive on approach to suit vehicle clearance and bay length. Extends up to 87". Retracts into itself 35" minimum
• Each heavy duty rolling jack is easy to position and provides 6,000 lbs of wheelfree® lifting
• Lifts straight up - no for or aft movement
• Cross aligned heavy duty hydraulic cylinders maintain constant level lifting with supporting reinforcing rear mount cross member
• Dual engaging twin interlocking mechanical safety racks with pneumatic release
• Smooth lift operation with captured re-enforced glide blocks
• Single point safety lock release system
• Compact, enclosed control console
• On-board Filter/Regulator/Lubricator (FRL) protects air systems
• Powder coat finishing with non-skid runway platform surface
• Certified to the current ANSI/ALI ALCTV:2011 lift standard
SPECIFICATIONS
Capacity 12000 lbs
Lifting times 95 s
Lowering times 45 s
Lifting height 70 inch
Power supply 230 VAC 1Ph 50/60 Hz
Weight 6615 lbs
Width Between Runways 40 inch
4 Wheel Alignment Wheelbase 89 - 158 inch
2 Wheel Alignment Wheelbase 165 inch
Console Dimensions DxWxH 16.5 x 14.125 x 45.75 inch
Air Supply Requirements 90 - 140 Psi
Service Wheelbase 179 inch
Overall Width 90 inch
Lifting Speed 95 s
Lowering Speed 45 s
Runway Width 23 inch
35-66122 Hofmann 12k Scissor Alignment Lift
